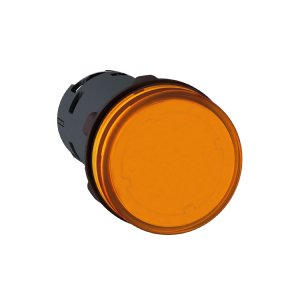

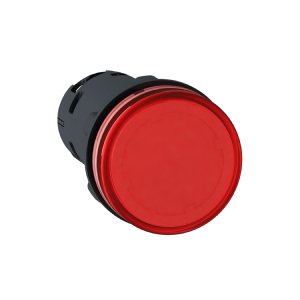

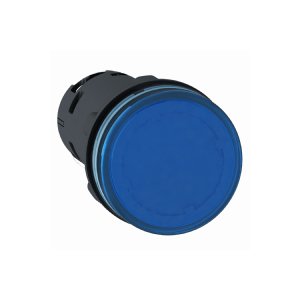

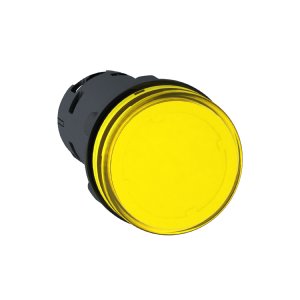

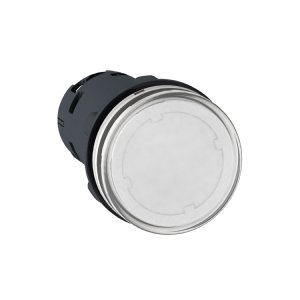

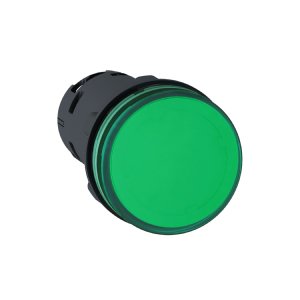

LED Pilot light
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Cap/Operator or lens colour | RED, YELLOW, BLUE, GREEN, WHTE, ORANGE |
| Light source | LED |
| Bulb base | Integral LED |
| Rated supply voltageRated supply voltage | 230...240 V AC & 24 V AC; 50/60 Hz |

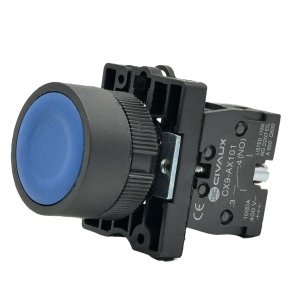

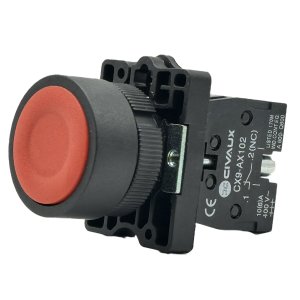

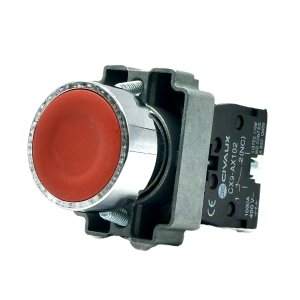

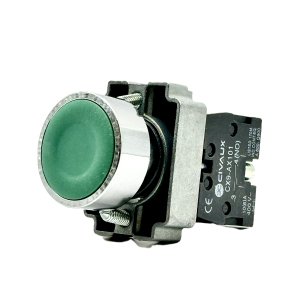

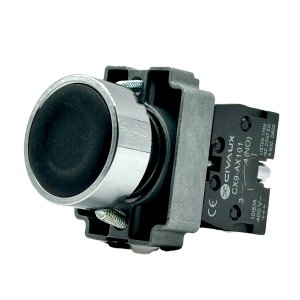

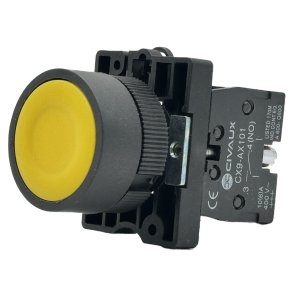

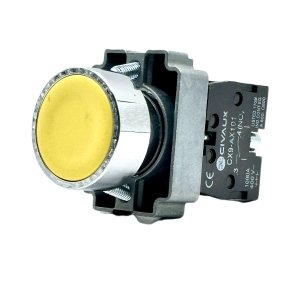

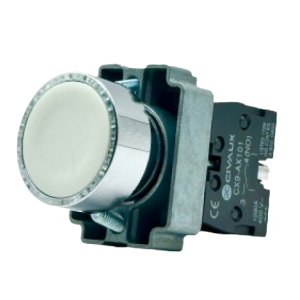

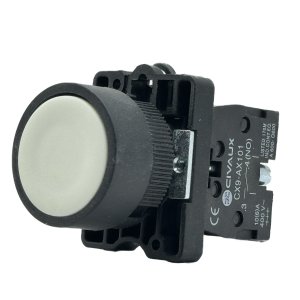

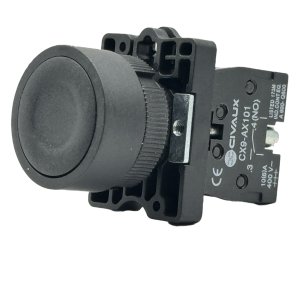

Push Button Switch
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Operator colour | White, Black, Green, Red, Blue, Yellow |
| Type of operator | Spring Return |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529 |

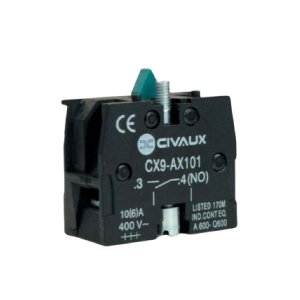

| Contacts type and composition | 1 NO + 1 NC |

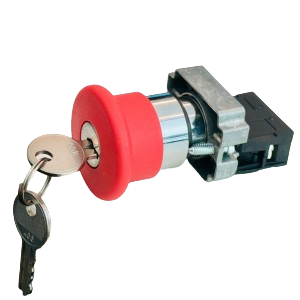

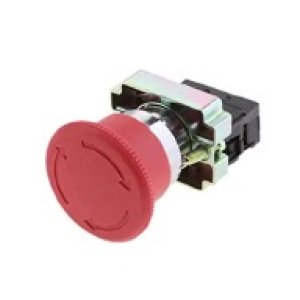

Emergency stop Mushroom head
Push button
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Operator colour | Red mushroom Ø 40 mm |
| Reset | Turn to release |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 , IP65 (front face) conforming to IEC 60529 |
| Contacts type and composition | 1 NC |

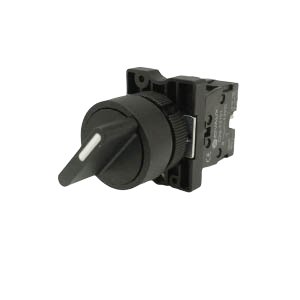

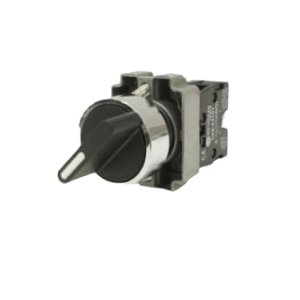

Selector switch (2 & 3 Position)
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Operator colour | Black handle |
| Type of operator | Stay put |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 , IP65 (front face) conforming to IEC 60529 |
| Contacts type and composition | 1 NO + 1 NC |
